Supplementary Material for Our Paper

Multi-Class (Anisotropic) Electrostatic Halftoning

Multi-Class (Anisotropic) Electrostatic Halftoning
Additional Example Images

In this page, we present additional experiments that illustrate the performance of our algorithms. To prevent sampling and aliasing artefacts, we suggest to view each halftoning in its full resolution by clicking onto the images.

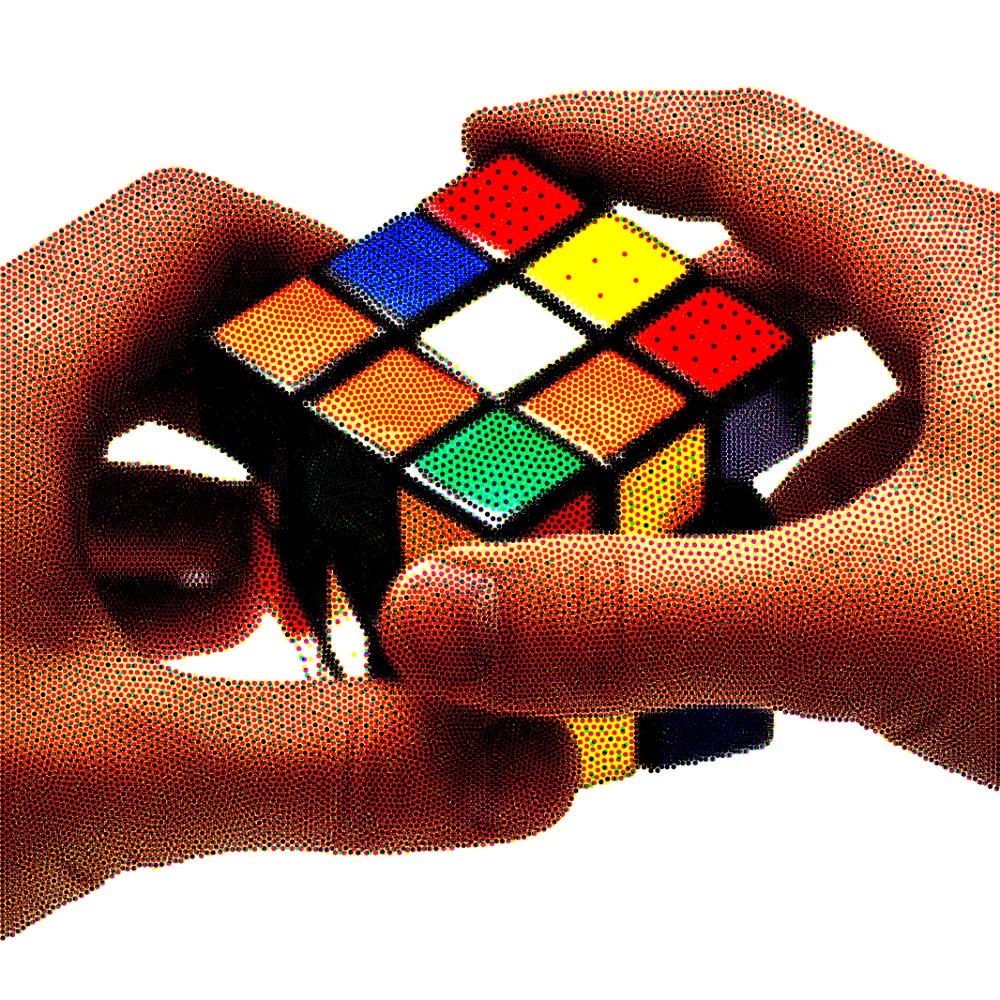

Original Image	Halftoned in CMY colour model

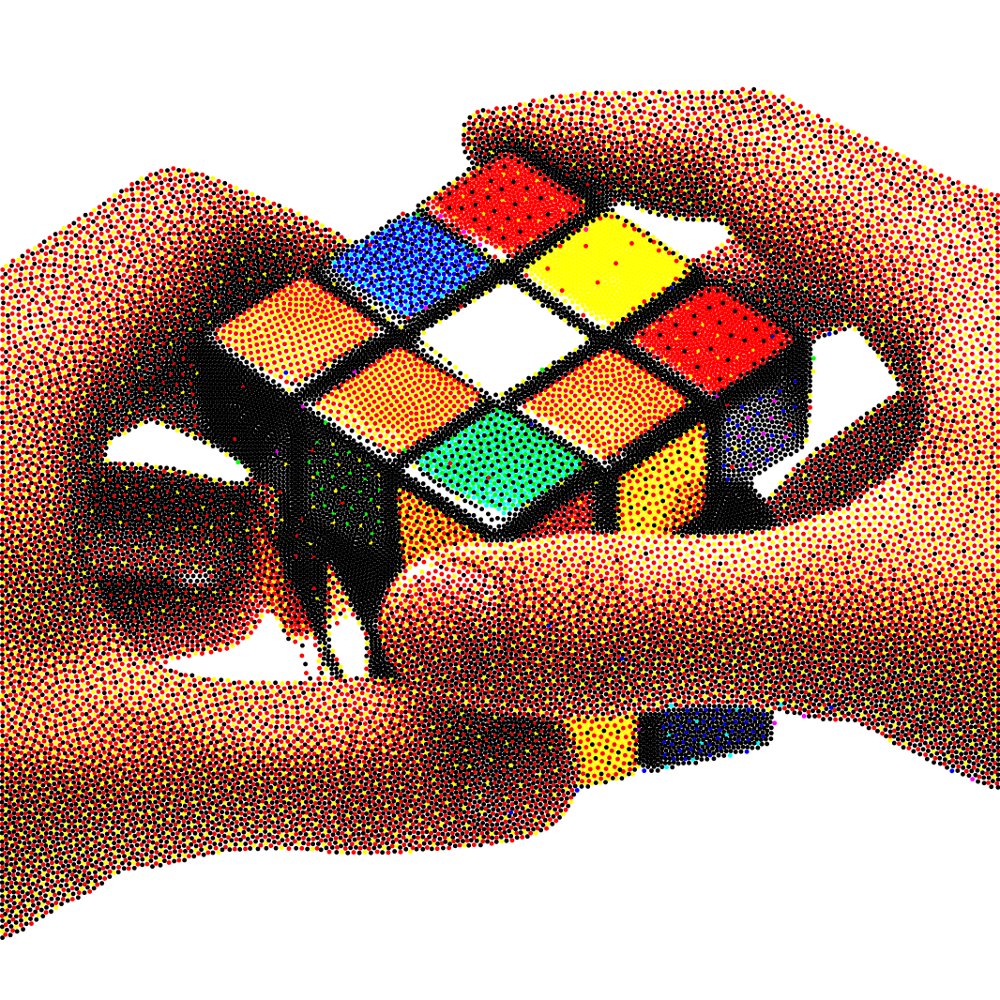

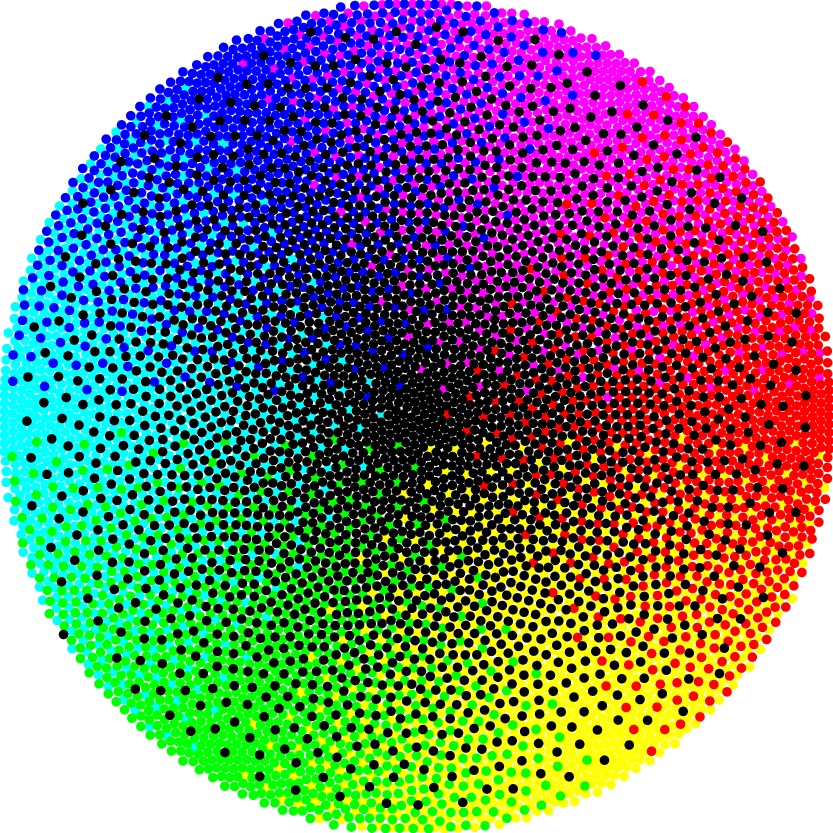

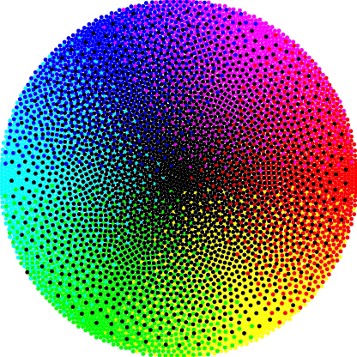

Halftoned in CMYK colour model	Halftoned in CMY-RBG-K colour model

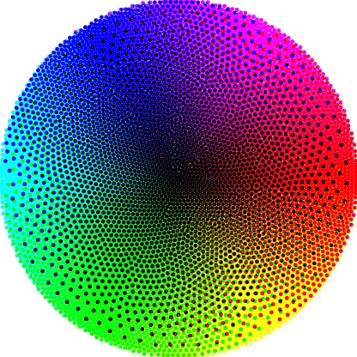

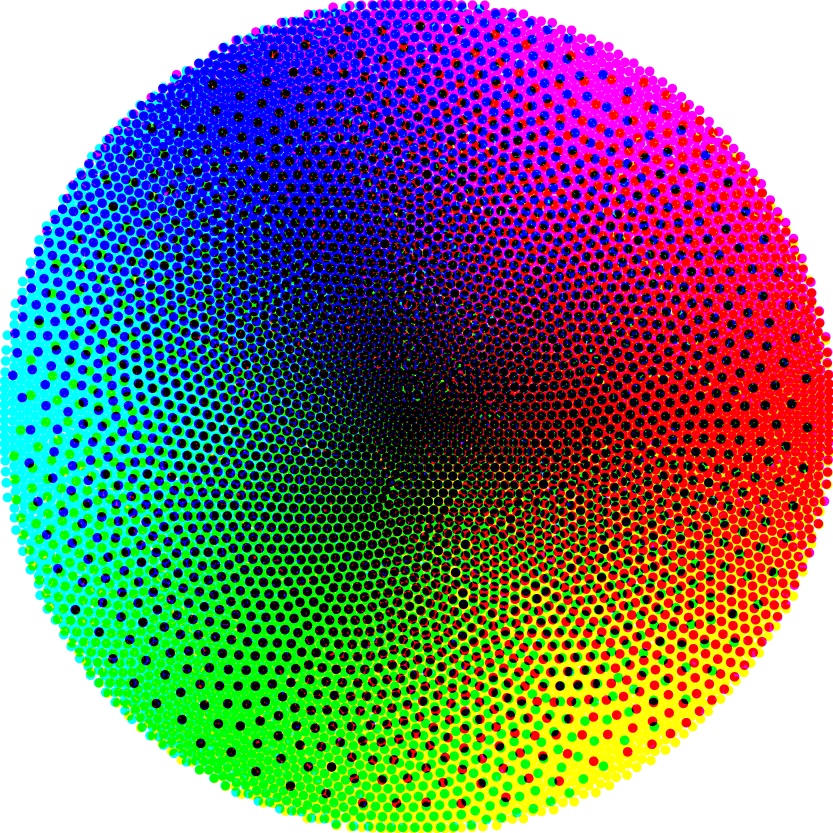

Original image	Halftoned, CMY

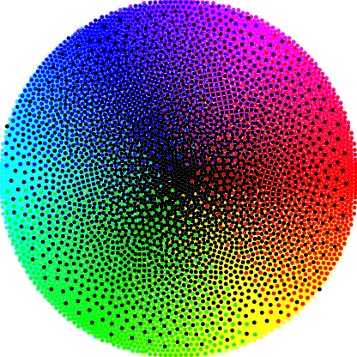

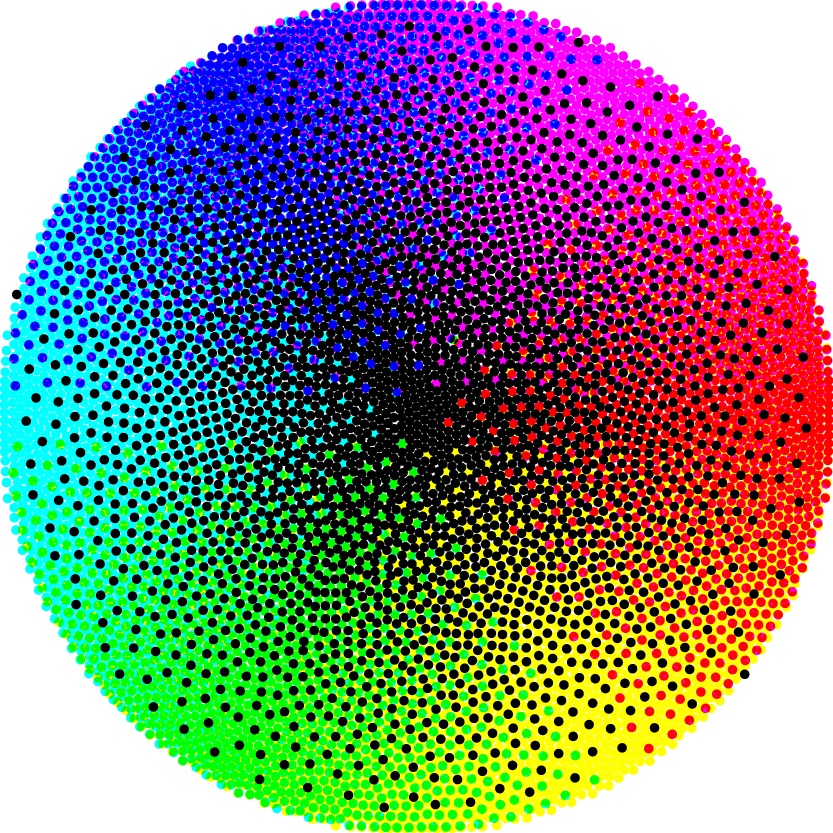

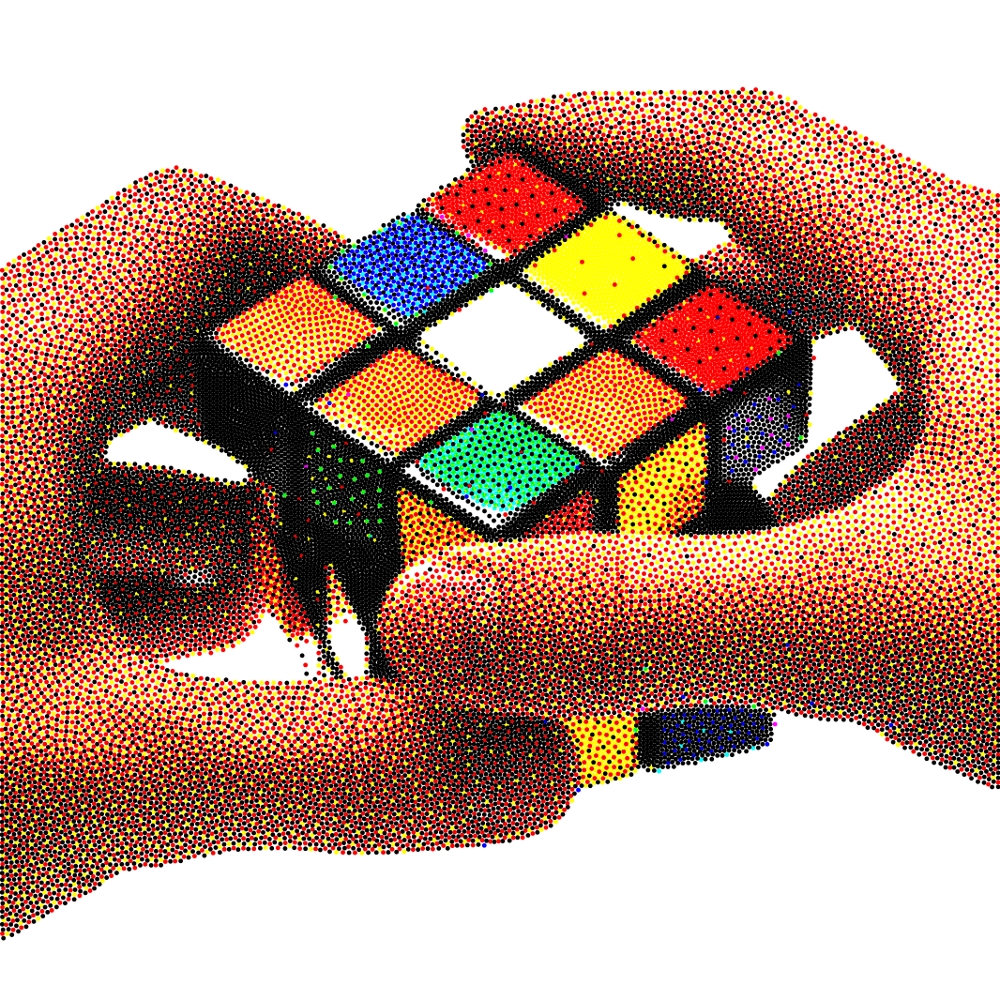

Halftoned, CMYK	Halftoned, CMY-RB-K
Halftoned, CMY-RG-K	Halftoned, CMY-RBG-K

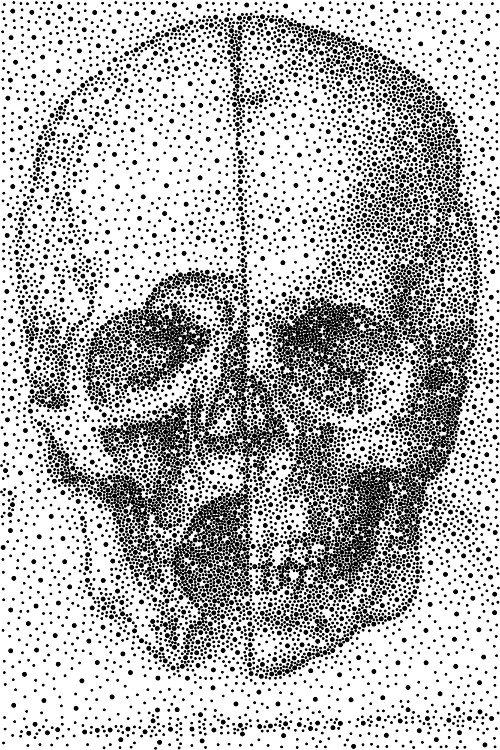

Original image	2nd order halftoning
2nd order halftoning where 10% of all small particles were omitted	Only the large particles from 2nd order halftoning

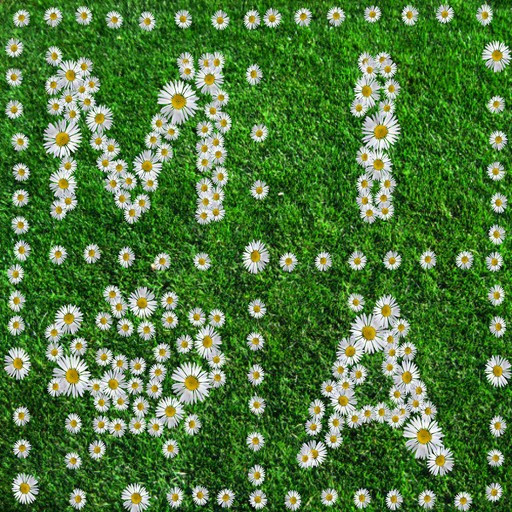

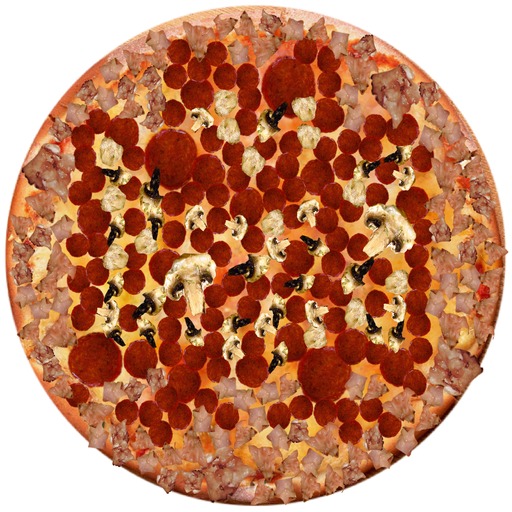

The last two images show single and multi-class sampling examples involving the MIA-logo (see upper left corner of this page). Each sprite was used in three different sizes, and each individual sprite is rotated by a random angle to avoid regular patterns. The images were generated from images of daisies (Author: André Karwath, commons.wikimedia.org, CC-BY-SA), salami (User:vagabondvince310, flickr.com, CC-BY), mushrooms (User:cyclonebill, flickr.com, CC-BY-SA), and ham (User:fugutabetai_shyashin, flickr.com, CC-BY-NC-SA).

< Influence of α   Main Page
